9055

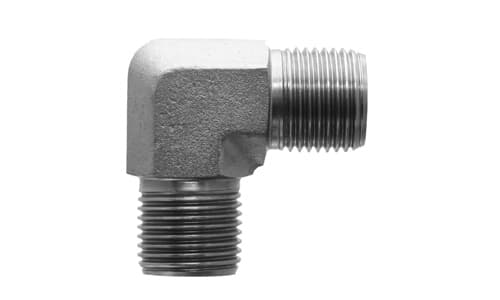

BSPP 90 degree Elbow Fitting

BSPP fittings with bonded seals use British Standard Pipe threads, characterized by a 55-degree thread flank angle, unlike the 60-degree angle of NPTF threads. Bonded seals are essential for secure sealing when using male BSPP threads in ports or blocks, making them ideal for high-pressure systems. These fittings are compatible with our 9500 Bonded Seal series.

Material:Carbon Steel

Plating:Trivalent Zinc

Shaping:Forged

Dimensional Drawings

Technical Specs

Size:

Item code	Item name	Qty	List price	Your price	Total
9055-02-02	90° Elbow, 1/8" Male BSPP x 1/8" Male BSPP - Steel Hydraulic Adapters	Quantity	List price $5.32	Your price	Total $5.32
9055-04-04	90° Elbow, 1/4" Male BSPP x 1/4" Male BSPP - Steel Hydraulic Adapters	Quantity	List price $13.69	Your price	Total $13.69
9055-06-04	90° Elbow, 3/8" Male BSPP x 1/4" Male BSPP - Steel Hydraulic Adapters	Quantity	List price $40.68	Your price	Total $40.68
9055-06-06	90° Elbow, 3/8" Male BSPP x 3/8" Male BSPP - Steel Hydraulic Adapters	Quantity	List price $42.59	Your price	Total $42.59
9055-08-06	90° Elbow, 1/2" Male BSPP x 3/8" Male BSPP - Steel Hydraulic Adapters	Quantity	List price $45.15	Your price	Total $45.15
9055-08-08	90° Elbow, 1/2" Male BSPP x 1/2" Male BSPP - Steel Hydraulic Adapters	Quantity	List price $10.15	Your price	Total $10.15
9055-10-10	90° Elbow, 5/8" Male BSPP x 5/8" Male BSPP - Steel Hydraulic Adapters	Quantity	List price $20.52	Your price	Total $20.52
9055-12-08	90° Elbow, 3/4" Male BSPP x 1/2" Male BSPP - Steel Hydraulic Adapters	Quantity	List price $22.21	Your price	Total $22.21
9055-12-12	90° Elbow, 3/4" Male BSPP x 3/4" Male BSPP - Steel Hydraulic Adapters	Quantity	List price $20.04	Your price	Total $20.04
9055-16-12	90° Elbow, 1" Male BSPP x 3/4" Male BSPP - Steel Hydraulic Adapters	Quantity	List price $23.99	Your price	Total $23.99
9055-16-16	90° Elbow, 1" Male BSPP x 1" Male BSPP - Steel Hydraulic Adapters	Quantity	List price $23.74	Your price	Total $23.74
9055-20-20	90° Elbow, 1-1/4" Male BSPP x 1-1/4" Male BSPP - Steel Hydraulic Adapters	Quantity	List price $44.91	Your price	Total $44.91
9055-24-24	90° Elbow, 1-1/2" Male BSPP x 1-1/2" Male BSPP - Steel Hydraulic Adapters	Quantity	List price $236.27	Your price	Total $236.27
9055-32-32	90° Elbow, 2" Male BSPP x 2" Male BSPP - Steel Hydraulic Adapters	Quantity	List price $435.54	Your price	Total $435.54

Items of 14 items

Page:of 1
