SS-6400

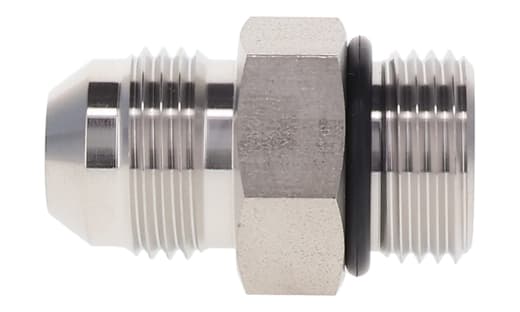

JIC/AN Male to SAE O-Ring Boss ORB Male Adapter

Manufactured to the precise SAE J514 standard, our stainless steel ORB (O-Ring Boss) fittings exemplify robustness and precision. Naturally resistant to corrosion and rust, they are designed for demanding environments. Featuring both ORB and NPT configurations, these fittings ensure broad applicability. The stainless steel construction guarantees enduring strength and a polished appearance.

Material:316L Stainless Steel

Shaping:Forged

Standards:ASME B1.20.1, SAE AS71051

O-Ring Material:NBR (Buna-N) (Viton available upon request)

Dimensional Drawings

Technical Specs

Competitor Cross Reference

Size:

Item code	Item name	Qty	List price	Your price	Total
SS-6400-02-02	1/8" 37° JIC (5/16"-24 thread) x 1/8" ORB (5/16"-24 thread) Male - Stainless Steel	Quantity	List price $9.88	Your price	Total $9.88
SS-6400-03-02	3/16" 37° JIC (3/8"-24 thread) x 1/8" ORB (5/16"-24 thread) Male - Stainless Steel	Quantity	List price $53.56	Your price	Total $53.56
SS-6400-03-03	3/16" 37° JIC (3/8"-24 thread) x 3/16" ORB (3/8"-24 thread) Male - Stainless Steel	Quantity	List price $15.38	Your price	Total $15.38
SS-6400-03-04	3/16" 37° JIC (3/8"-24 thread) x 1/4" ORB (7/16"-20 thread) Male - Stainless Steel	Quantity	List price $8.77	Your price	Total $8.77
SS-6400-04-02	1/4" 37° JIC (7/16"-20 thread) x 1/8" ORB (5/16"-24 thread) Male - Stainless Steel	Quantity	List price $20.50	Your price	Total $20.50
SS-6400-04-03	1/4" 37° JIC (7/16"-20 thread) x 3/16" ORB (3/8"-24 thread) Male - Stainless Steel	Quantity	List price $21.57	Your price	Total $21.57
SS-6400-04-04	1/4" 37° JIC (7/16"-20 thread) x 1/4" ORB (7/16"-20 thread) Male - Stainless Steel	Quantity	List price $7.99	Your price	Total $7.99
SS-6400-04-05	1/4" 37° JIC (7/16"-20 thread) x 5/16" ORB (1/2"-20 thread) Male - Stainless Steel	Quantity	List price $19.67	Your price	Total $19.67
SS-6400-04-06	1/4" 37° JIC (7/16"-20 thread) x 3/8" ORB (9/16"-18 thread) Male - Stainless Steel	Quantity	List price $12.31	Your price	Total $12.31
SS-6400-04-08	1/4" 37° JIC (7/16"-20 thread) x 1/2" ORB (3/4"-16 thread) Male - Stainless Steel	Quantity	List price $15.30	Your price	Total $15.30
SS-6400-04-10	1/4" 37° JIC (7/16"-20 thread) x 5/8" ORB (7/8"-14 thread) Male - Stainless Steel	Quantity	List price $37.26	Your price	Total $37.26
SS-6400-04-12	1/4" 37° JIC (7/16"-20 thread) x 3/4" ORB (1 1/16"-12 thread) Male - Stainless Steel	Quantity	List price $41.96	Your price	Total $41.96
SS-6400-05-05	5/16" 37° JIC (1/2"-20 thread) x 5/16" ORB (1/2"-20 thread) Male - Stainless Steel	Quantity	List price $8.34	Your price	Total $8.34
SS-6400-06-04	3/8" 37° JIC (9/16"-18 thread) x 1/4" ORB (7/16 - 20 thread) Male - Stainless Steel	Quantity	List price $19.17	Your price	Total $19.17
SS-6400-06-05	3/8" 37° JIC (9/16"-18 thread) x 5/16" ORB (1/2"-20 thread) Male - Stainless Steel	Quantity	List price $37.73	Your price	Total $37.73
SS-6400-06-06	3/8" 37° JIC (9/16"-18 thread) x 3/8" ORB (9/16"-18 thread) Male - Stainless Steel	Quantity	List price $10.09	Your price	Total $10.09
SS-6400-06-08	3/8" 37° JIC (9/16"-18 thread) x 1/2" ORB (3/4"-16 thread) Male - Stainless Steel	Quantity	List price $18.60	Your price	Total $18.60
SS-6400-06-10	3/8" 37° JIC (9/16"-18 thread) x 5/8" ORB (7/8"-14 thread) Male - Stainless Steel	Quantity	List price $43.29	Your price	Total $43.29
SS-6400-06-12	3/8" 37° JIC (9/16"-18 thread) x 3/4" ORB (1 1/16"-12 thread) Male - Stainless Steel	Quantity	List price $41.51	Your price	Total $41.51
SS-6400-08-04	1/2" 37° JIC (3/4"-16 thread) x 1/4" ORB (1-5/8"-12 thread) Male - Stainless Steel	Quantity	List price $25.25	Your price	Total $25.25
SS-6400-08-06	1/2" 37° JIC (3/4"-16 thread) x 3/8" ORB (9/16"-18 thread) Male - Stainless Steel	Quantity	List price $20.92	Your price	Total $20.92
SS-6400-08-08	1/2" 37° JIC (3/4"-16 thread) x 1/2" ORB (3/4"-16 thread) Male - Stainless Steel	Quantity	List price $16.18	Your price	Total $16.18
SS-6400-08-10	1/2" 37° JIC (3/4"-16 thread) x 5/8" ORB (7/8"-14 thread) Male - Stainless Steel	Quantity	List price $27.13	Your price	Total $27.13
SS-6400-08-12	1/2" 37° JIC (3/4"-16 thread) x 3/4" ORB (1 1/16"-12 thread) Male - Stainless Steel	Quantity	List price $43.88	Your price	Total $43.88
SS-6400-08-16	1/2" 37° JIC (3/4"-16 thread) x 1" ORB (1 5/16"-12 thread) Male - Stainless Steel	Quantity	List price $92.95	Your price	Total $92.95
SS-6400-10-06	5/8" 37° JIC x 3/8" ORB (9/16"-18 thread) Male - Stainless Steel	Quantity	List price $60.42	Your price	Total $60.42
SS-6400-10-08	5/8" 37° JIC x 1/2" ORB (3/4"-16 thread) Male - Stainless Steel	Quantity	List price $17.63	Your price	Total $17.63
SS-6400-10-10	5/8" 37° JIC x 5/8" ORB (7/8"-14 thread) Male - Stainless Steel	Quantity	List price $26.13	Your price	Total $26.13
SS-6400-10-12	5/8" 37° JIC x 3/4" ORB (1 1/16"-12 thread) Male - Stainless Steel	Quantity	List price $78.72	Your price	Total $78.72
SS-6400-10-16	5/8" 37° JIC x 1" ORB (1 5/16"-12 thread) Male - Stainless Steel	Quantity	List price $175.61	Your price	Total $175.61
SS-6400-12-06	3/4" 37° JIC (1 1/16"-12 thread) x 3/8" ORB (9/16"-18 thread) Male - Stainless Steel	Quantity	List price $24.21	Your price	Total $24.21
SS-6400-12-08	3/4" 37° JIC (1 1/16"-12 thread) x 1/2" ORB (3/4"-16 thread) Male - Stainless Steel	Quantity	List price $72.43	Your price	Total $72.43
SS-6400-12-10	3/4" 37° JIC (1 1/16"-12 thread) x 5/8" ORB (7/8"-14 thread) Male - Stainless Steel	Quantity	List price $39.50	Your price	Total $39.50
SS-6400-12-12	3/4" 37° JIC (1 1/16"-12 thread) x 3/4" ORB (1 1/16"-12 thread) Male - Stainless Steel	Quantity	List price $30.50	Your price	Total $30.50
SS-6400-12-16	3/4" 37° JIC (1 1/16"-12 thread) x 1" ORB (1 5/16"-12 thread) Male - Stainless Steel	Quantity	List price $56.52	Your price	Total $56.52
SS-6400-12-20	3/4" 37° JIC (1 1/16"-12 thread) x 1 1/4" ORB (1-5/8"-12 thread) Male - Stainless Steel	Quantity	List price $137.53	Your price	Total $137.53
SS-6400-16-08	1" 37° JIC (1 5/16"-12 thread) x 1/2" ORB (3/4"-16 thread) Male - Stainless Steel	Quantity	List price $37.12	Your price	Total $37.12
SS-6400-16-10	1" 37° JIC (1 5/16"-12 thread) x 5/8" ORB (7/8"-14 thread) Male - Stainless Steel	Quantity	List price $98.75	Your price	Total $98.75
SS-6400-16-12	1" 37° JIC (1 5/16"-12 thread) x 3/4" ORB (1 1/16"-12 thread) Male - Stainless Steel	Quantity	List price $81.65	Your price	Total $81.65
SS-6400-16-16	1" 37° JIC (1 5/16"-12 thread) x 1" ORB (1 5/16"-12 thread) Male - Stainless Steel	Quantity	List price $70.75	Your price	Total $70.75
SS-6400-16-20	1" 37° JIC (1 5/16"-12 thread) x 1 1/4" ORB (1-5/8"-12 thread) Male - Stainless Steel	Quantity	List price $121.91	Your price	Total $121.91
SS-6400-16-24	1" 37° JIC (1 5/16"-12 thread) x 1 1/2" ORB (1-7/8"-12 thread) Male - Stainless Steel	Quantity	List price $151.63	Your price	Total $151.63
SS-6400-20-12	1 1/4" 37° JIC (1 5/8"-12 thread) x 3/4" ORB (1 1/16"-12 thread) Male - Stainless Steel	Quantity	List price $166.70	Your price	Total $166.70
SS-6400-20-16	1 1/4" 37° JIC (1 5/8"-12 thread) x 1" ORB (1 5/16"-12 thread) Male - Stainless Steel	Quantity	List price $71.18	Your price	Total $71.18
SS-6400-20-20	1 1/4" 37° JIC (1 5/8"-12 thread) x 1 1/4" ORB (1-5/8"-12 thread) Male - Stainless Steel	Quantity	List price $120.31	Your price	Total $120.31
SS-6400-20-24	1 1/4" 37° JIC (1 5/8"-12 thread) x 1 1/2" ORB (1-7/8"-12 thread) Male - Stainless Steel	Quantity	List price $182.17	Your price	Total $182.17
SS-6400-24-20	1 1/2" 37° JIC (1 7/8"-12 thread) x 1 1/4" ORB (1-5/8"-12 thread) Male - Stainless Steel	Quantity	List price $167.02	Your price	Total $167.02
SS-6400-24-24	1 1/2" 37° JIC (1 7/8"-12 thread) x 1 1/2" ORB (1-7/8"-12 thread) Male - Stainless Steel	Quantity	List price $179.91	Your price	Total $179.91
SS-6400-24-32	1 1/2" 37° JIC (1 7/8"-12 thread) x 2" ORB (2 1/2"-12 thread) Male - Stainless Steel	Quantity	List price $264.66	Your price	Total $264.66
SS-6400-32-24	2" 37° JIC (2 1/2"-12 thread) x 1 1/2" ORB (1-7/8"-12 thread) Male - Stainless Steel	Quantity	List price $519.25	Your price	Total $519.25
SS-6400-32-32	2" 37° JIC (2 1/2"-12 thread) x 2" ORB (2 1/2"-12 thread) Male - Stainless Steel	Quantity	List price $237.56	Your price	Total $237.56

Items of 51 items
