1503

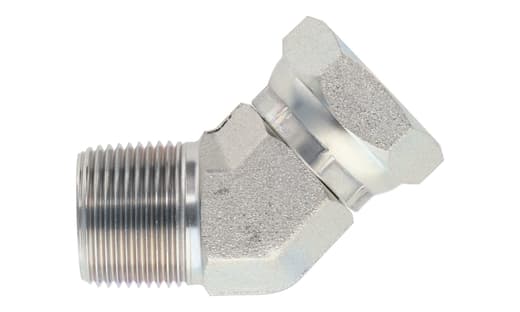

NPTF Pipe Male x NPSM Pipe Swivel Female 45° Elbow

These fittings, made from durable, pressure-resistant forged carbon steel, are enhanced with a zinc-trivalent anti-corrosion coating. NPT, or National Pipe Thread, is a tapered thread commonly used in the U.S. for its dependable seal, while NPSM is its straight-threaded counterpart. The Female National Pipe Straight Mechanical (NPSM) fittings feature a 30° seat that aligns with the male fitting, ensuring a secure, leak-resistant metal connection.

Material:Carbon Steel

Plating:Trivalent Zinc

Shaping:Forged

Dimensional Drawings

Technical Specs

Competitor Cross Reference

Size:

Item code	Item name	Qty	List price	Your price	Total
1503-02-02	45° Elbow, 1/8" NPTF Male x 1/8" NPSM Swivel hydraulic fittings	Quantity	List price $3.23	Your price	Total $3.23
1503-02-04	45° Elbow, 1/8" NPTF Male x 1/4" NPSM Swivel hydraulic fittings	Quantity	List price $6.19	Your price	Total $6.19
1503-04-02	45° Elbow, 1/4" NPTF Male x 1/8" NPSM Swivel hydraulic fittings	Quantity	List price $6.60	Your price	Total $6.60
1503-04-04	45° Elbow, 1/4" NPTF Male x 1/4" NPSM Swivel hydraulic fittings	Quantity	List price $10.79	Your price	Total $10.79
1503-04-06	45° Elbow, 1/4" NPTF Male x 3/8" NPSM Swivel hydraulic fittings	Quantity	List price $7.76	Your price	Total $7.76
1503-06-04	45° Elbow, 3/8" NPTF Male x 1/4" NPSM Swivel hydraulic fittings	Quantity	List price $10.22	Your price	Total $10.22
1503-06-06	45° Elbow, 3/8" NPTF Male x 3/8" NPSM Swivel hydraulic fittings	Quantity	List price $4.54	Your price	Total $4.54
1503-06-08	45° Elbow, 3/8" NPTF Male x 1/2" NPSM Swivel hydraulic fittings	Quantity	List price $10.94	Your price	Total $10.94
1503-08-04	45° Elbow, 1/2" NPTF Male x 1/4" NPSM Swivel hydraulic fittings	Quantity	List price $10.87	Your price	Total $10.87
1503-08-06	45° Elbow, 1/2" NPTF Male x 3/8" NPSM Swivel hydraulic fittings	Quantity	List price $7.88	Your price	Total $7.88
1503-08-08	45° Elbow, 1/2" NPTF Male x 1/2" NPSM Swivel hydraulic fittings	Quantity	List price $5.88	Your price	Total $5.88
1503-08-12	45° Elbow, 1/2" NPTF Male x 3/4" NPSM Swivel hydraulic fittings	Quantity	List price $17.46	Your price	Total $17.46
1503-12-06	45° Elbow, 3/4" NPTF Male x 3/8" NPSM Swivel hydraulic fittings	Quantity	List price $18.81	Your price	Total $18.81
1503-12-08	45° Elbow, 3/4" NPTF Male x 1/2" NPSM Swivel hydraulic fittings	Quantity	List price $16.82	Your price	Total $16.82
1503-12-12	45° Elbow, 3/4" NPTF Male x 3/4" NPSM Swivel hydraulic fittings	Quantity	List price $11.59	Your price	Total $11.59
1503-12-16	45° Elbow, 3/4" NPTF Male x 1" NPSM Swivel hydraulic fittings	Quantity	List price $22.44	Your price	Total $22.44
1503-16-12	45° Elbow, 1" NPTF Male x 3/4" NPSM Swivel hydraulic fittings	Quantity	List price $20.52	Your price	Total $20.52
1503-16-16	45° Elbow, 1" NPTF Male x 1" NPSM Swivel hydraulic fittings	Quantity	List price $18.36	Your price	Total $18.36
1503-16-20	45° Elbow, 1" NPTF Male x 1-1/4" NPSM Swivel hydraulic fittings	Quantity	List price $46.35	Your price	Total $46.35
1503-20-16	45° Elbow, 1-1/4" NPTF Male x 1" NPSM Swivel hydraulic fittings	Quantity	List price $43.30	Your price	Total $43.30
1503-20-20	45° Elbow, 1-1/4" NPTF Male x 1-1/4" NPSM Swivel hydraulic fittings	Quantity	List price $25.29	Your price	Total $25.29
1503-24-24	45° Elbow, 1-1/2" NPTF Male x 1-1/2" NPSM Swivel hydraulic fittings	Quantity	List price $59.15	Your price	Total $59.15
1503-32-32	45° Elbow, 2" NPTF Male x 2" NPSM Swivel hydraulic fittings	Quantity	List price $140.09	Your price	Total $140.09

Items of 23 items

Page:of 1
