6400L

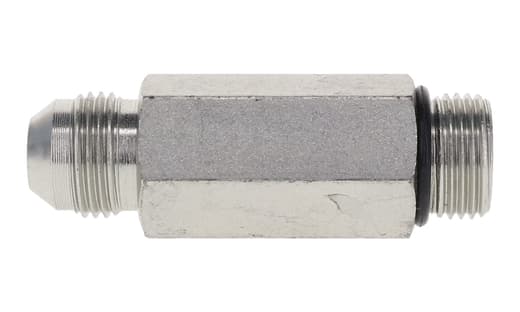

37° JIC SAE Flare Male x SAE O-Ring Boss ORB Male Adapter Long

SAE O-Ring Boss (ORB) hydraulic adapters are crafted from pressure-resistant carbon steel, known for its resilience and durability in demanding hydraulic settings. These ORB adapters can be used to convert to NPT (National Pipe Thread), JIC (Joint Industry Council) conforming to SAE J514 technical specifications, and NPSM (National Pipe Straight Mechanical). Each type features distinct threading and sealing designs to meet diverse hydraulic system needs. To enhance durability and corrosion resistance, these adapters are coated with zinc-trivalent anti-corrosion plating.

Material:Carbon Steel

Plating:Trivalent Zinc

Shaping:Forged

O-Ring Material:NBR (Buna-N) (Viton available upon request)

Dimensional Drawings

Technical Specs

Competitor Cross Reference

Size:

Item code	Item name	Qty	List price	Your price	Total
6400L-04-04	1/4" JIC (7/16"-20 thread) x 1/4" ORB (7/16"-20 thread) Male, Long hydraulic fittings	Quantity	List price $8.42	Your price	Total $8.42
6400L-05-05	5/16" JIC (1/2"-20) x 5/16" ORB (1/2"-20 thread) Male, Long hydraulic fittings	Quantity	List price $7.00	Your price	Total $7.00
6400L-06-06	3/8" JIC (9/16"-18 thread) x 3/8" ORB (9/16"-18 thread) Male, Long hydraulic fittings	Quantity	List price $5.91	Your price	Total $5.91
6400L-06-08	3/8" JIC (9/16"-18 thread) x 1/2" ORB (3/4"-16 thread) Male, Long hydraulic fittings	Quantity	List price $7.48	Your price	Total $7.48
6400L-08-08	1/2" JIC (3/4"-16 thread) x 1/2" ORB (3/4"-16 thread) Male, Long hydraulic fittings	Quantity	List price $9.76	Your price	Total $9.76
6400L-10-10	5/8" JIC (7/8"-14 thread) x 5/8" ORB (7/8"-14 thread) Male, Long hydraulic fittings	Quantity	List price $12.01	Your price	Total $12.01
6400L-12-12	3/4" JIC (1 1/16"-12 thread) x 3/4" ORB (1 1/16"-12 thread) Male, Long hydraulic fittings	Quantity	List price $20.17	Your price	Total $20.17
6400L-12-16	3/4" JIC (1 1/16"-12 thread) x 1" ORB (1 5/16"-12 thread) Male, Long hydraulic fittings	Quantity	List price $22.21	Your price	Total $22.21
6400L-16-16	1" JIC (1 5/16"-12 thread) x 1" ORB (1 5/16"-12 thread) Male, Long hydraulic fittings	Quantity	List price $22.93	Your price	Total $22.93
6400L-20-20	1-1/4" JIC (1-5/8"-12 thread) x 1 1/4" ORB (1 5/8"-12 thread) Male, Long hydraulic fittings	Quantity	List price $33.22	Your price	Total $33.22
6400L-24-24	1-1/2" JIC (1-7/8"-12 thread) x 1 1/2" ORB (1 7/8"-12 thread) Male, Long hydraulic fittings	Quantity	List price $57.62	Your price	Total $57.62

Items of 11 items

Page:of 1
