6809

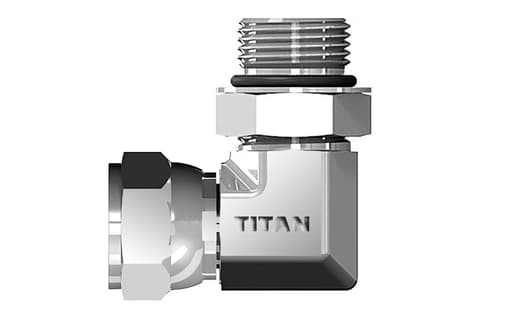

SAE O-Ring Boss ORB Male x 37° JIC SAE Flare Female Swivel 90° Elbow

SAE O-Ring Boss (ORB) hydraulic adapters are crafted from pressure-resistant carbon steel, known for its resilience and durability in demanding hydraulic environments. These ORB adapters can also be used to convert to NPT (National Pipe Thread), JIC (Joint Industry Council) conforming to SAE J514 technical specifications, and NPSM (National Pipe Straight Mechanical). Each type features distinct threading and sealing designs to meet various hydraulic system requirements. To enhance durability and corrosion resistance, these adapters are coated with a zinc-trivalent anti-corrosion plating.

Material:Carbon Steel

Plating:Trivalent Zinc

Shaping:Forged

O-Ring Material:NBR (Buna-N) (Viton available upon request)

Technical Specs

Competitor Cross Reference

Size:

Item code	Item name	Qty	List price	Your price	Total
6809-04-04	90° Elbow, 1/4" ORB (7/16"-20 thread) Male x 1/4" JIC (7/16"-20 thread) Female Swivel hydraulic fittings	Quantity	List price $6.54	Your price	Total $6.54
6809-06-06	90° Elbow, 3/8" ORB (9/16"-18 thread) Male x 3/8" JIC (9/16"-18 thread) Female Swivel hydraulic fittings	Quantity	List price $7.23	Your price	Total $7.23
6809-08-06	90° Elbow, 1/2" ORB (3/4"-16 thread) Male x 3/8" JIC (9/16"-18 thread) Female Swivel hydraulic fittings	Quantity	List price $10.02	Your price	Total $10.02
6809-08-08	90° Elbow, 1/2" ORB (3/4"-16 thread) Male x 1/2" JIC (3/4"-16 thread) Female Swivel hydraulic fittings	Quantity	List price $10.84	Your price	Total $10.84
6809-10-08	90° Elbow, 5/8" ORB (7/8"-14 thread) Male x 1/2" JIC (3/4"-16 thread) Female Swivel hydraulic fittings	Quantity	List price $15.94	Your price	Total $15.94
6809-10-10	90° Elbow, 5/8" ORB (7/8"-14 thread) Male x 5/8" JIC (7/8"-14 thread) Female Swivel hydraulic fittings	Quantity	List price $13.69	Your price	Total $13.69
6809-12-10	90° Elbow, 3/4" ORB (1 1/16"-12 thread) Male x 5/8" JIC (7/8"-14 thread) Female Swivel hydraulic fittings	Quantity	List price $23.90	Your price	Total $23.90
6809-12-12	90° Elbow, 3/4" ORB (1 1/16"-12 thread) Male x 3/4" JIC (1 1/16"-12 thread) Female Swivel hydraulic fittings	Quantity	List price $18.86	Your price	Total $18.86
6809-16-16	90° Elbow, 1" ORB (1 5/16"-12 thread) Male x 1" JIC (1 5/16"-12 thread) Female Swivel hydraulic fittings	Quantity	List price $53.30	Your price	Total $53.30
6809-20-20	90° Elbow, 1 1/4" ORB (1 5/8"-12 thread) Male x 1-1/4" JIC (1-5/8"-12 thread) Female Swivel hydraulic fittings	Quantity	List price $51.10	Your price	Total $51.10

Items of 10 items

Page:of 1
