FS2650

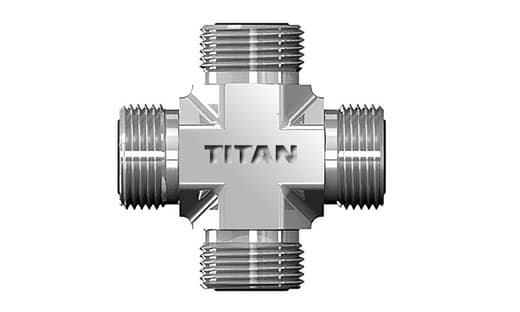

SAE O-Ring Face Seal ORFS Male Cross

O-Ring Face Seal (ORFS) Adapters are forged from high-pressure steel and treated with Carbon Zinc Trivalent for enhanced corrosion resistance. Complying with SAE J5143 standards, these adapters feature straight threads and an O-ring, ensuring a tight seal between male and female connections. Additionally, these fittings can adapt to various other thread types, including JIC, NPT, and NPSM.

Material:Carbon Steel

Plating:Trivalent Zinc

Shaping:Forged

O-Ring Material:NBR (Buna-N) (Viton available upon request)

Dimensional Drawings

Technical Specs

Size:

Item code	Item name	Qty	List price	Your price	Total
FS2650-04-04-04-04	Union Cross, 1/4" ORFS x 1/4" ORFS x 1/4" ORFS x 1/4" ORFS hydraulic fittings	Quantity	List price $13.18	Your price	Total $13.18
FS2650-06-06-06-06	Union Cross, 3/8" ORFS x 3/8" ORFS x 3/8" ORFS x 3/8" ORFS hydraulic fittings	Quantity	List price $18.24	Your price	Total $18.24
FS2650-08-08-08-08	Union Cross, 1/2" ORFS x 1/2" ORFS x 1/2" ORFS x 1/2" ORFS hydraulic fittings	Quantity	List price $20.46	Your price	Total $20.46
FS2650-10-10-10-10	Union Cross, 5/8" ORFS x 5/8" ORFS x 5/8" ORFS x 5/8" ORFS hydraulic fittings	Quantity	List price $31.46	Your price	Total $31.46
FS2650-12-12-12-12	Union Cross, 3/4" ORFS x 3/4" ORFS x 3/4" ORFS x 3/4" ORFS hydraulic fittings	Quantity	List price $42.04	Your price	Total $42.04
FS2650-16-16-16-16	Union Cross, 1" ORFS x 1" ORFS x 1" ORFS x 1" ORFS hydraulic fittings	Quantity	List price $54.53	Your price	Total $54.53
FS2650-20-20-20-20	Union Cross, 1-1/4" ORFS x 1-1/4" ORFS x 1-1/4" ORFS x 1-1/4" ORFS hydraulic fittings	Quantity	List price $69.55	Your price	Total $69.55

Items of 7 items

Page:of 1

FS2650

SAE O-Ring Face Seal ORFS Male Cross

FS2650-04-04-04-04

FS2650-06-06-06-06

FS2650-08-08-08-08

FS2650-10-10-10-10

FS2650-12-12-12-12

FS2650-16-16-16-16

FS2650-20-20-20-20
