FS6412

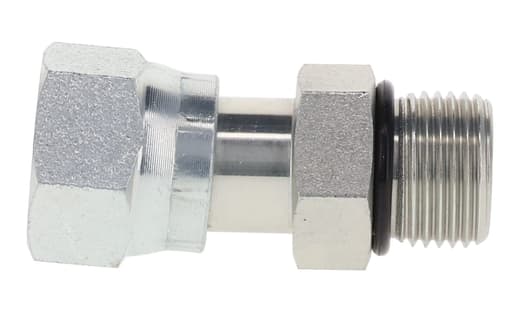

SAE O-Ring Face Seal ORFS Female Swivel x SAE O-Ring Boss ORB Male Straight Adapter

O-Ring Face Seal (ORFS) Adapters are forged from high-pressure steel and treated with Carbon Zinc Trivalent for enhanced corrosion resistance. Complying with SAE J5143 standards, these adapters feature straight threads and an O-ring, ensuring a tight seal between male and female connections. Additionally, these fittings can adapt to various other thread types, including JIC, NPT, and NPSM.

Material:Carbon Steel

Plating:Trivalent Zinc

Shaping:Forged

O-Ring Material:NBR (Buna-N) (Viton available upon request)

Technical Specs

Size:

Item code	Item name	Qty	List price	Your price	Total
FS6412-04-04	1/4" ORFS Female Swivel x 1/4" ORB Male (Straight Thread) hydraulic fittings	Quantity	List price $11.19	Your price	Total $11.19
FS6412-06-06	3/8" ORFS Female Swivel x 3/8" ORB Male (#6 Straight Thread) hydraulic fittings	Quantity	List price $9.42	Your price	Total $9.42
FS6412-08-08	1/2" ORFS Female Swivel x 1/2" ORB Male (#8 Straight Thread) hydraulic fittings	Quantity	List price $11.78	Your price	Total $11.78
FS6412-10-10	5/8" ORFS Female Swivel x 5/8" ORB Male (#10 Straight Thread) hydraulic fittings	Quantity	List price $18.58	Your price	Total $18.58
FS6412-12-12	3/4" ORFS Female Swivel x 3/4" ORB Male (#12 Straight Thread) hydraulic fittings	Quantity	List price $17.76	Your price	Total $17.76
FS6412-16-16	1" ORFS Female Swivel x 1" ORB Male (#16 Straight Thread) hydraulic fittings	Quantity	List price $30.36	Your price	Total $30.36
FS6412-20-20	1-1/4" ORFS Female Swivel x 1 1/4" ORB Male (#20 Straight Thread) hydraulic fittings	Quantity	List price $41.66	Your price	Total $41.66

Items of 7 items

Page:of 1

FS6412

SAE O-Ring Face Seal ORFS Female Swivel x SAE O-Ring Boss ORB Male Straight Adapter

FS6412-04-04

FS6412-06-06

FS6412-08-08

FS6412-10-10

FS6412-12-12

FS6412-16-16

FS6412-20-20
