FS6500

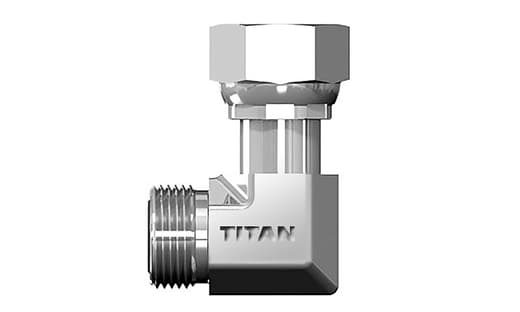

SAE O-Ring Face Seal ORFS Male x SAE O-Ring Face Seal ORFS Female Swivel 90° Elbow

O-Ring Face Seal (ORFS) Adapters are forged from high-pressure steel and treated with Carbon Zinc Trivalent for enhanced corrosion resistance. Complying with SAE J5143 standards, these adapters feature straight threads and an O-ring, ensuring a tight seal between male and female connections. Additionally, these fittings can adapt to various other thread types, including JIC, NPT, and NPSM.

Material:Carbon Steel

Plating:Trivalent Zinc

Shaping:Forged

O-Ring Material:NBR (Buna-N) (Viton available upon request)

Dimensional Drawings

Technical Specs

Size:

Item code	Item name	Qty	List price	Your price	Total
FS6500-04-04	90° Elbow, 1/4" ORFS Male x 1/4" ORFS Female Swivel hydraulic fittings	Quantity	List price $4.96	Your price	Total $4.96
FS6500-04-06	90° Elbow, 1/4" ORFS Male x 3/8" ORFS Female Swivel hydraulic fittings	Quantity	List price $8.09	Your price	Total $8.09
FS6500-06-06	90° Elbow, 3/8" ORFS Male x 3/8" ORFS Female Swivel hydraulic fittings	Quantity	List price $6.69	Your price	Total $6.69
FS6500-08-06	90° Elbow, 1/2" ORFS Male x 3/8" ORFS Female Swivel hydraulic fittings	Quantity	List price $9.14	Your price	Total $9.14
FS6500-08-08	90° Elbow, 1/2" ORFS Male x 1/2" ORFS Female Swivel hydraulic fittings	Quantity	List price $7.74	Your price	Total $7.74
FS6500-08-12	90° Elbow, 1/2" ORFS Male x 3/4" ORFS Female Swivel hydraulic fittings	Quantity	List price $21.72	Your price	Total $21.72
FS6500-10-10	90° Elbow, 5/8" ORFS Male x 5/8" ORFS Female Swivel hydraulic fittings	Quantity	List price $10.16	Your price	Total $10.16
FS6500-12-12	90° Elbow, 3/4" ORFS Male x 3/4" ORFS Female Swivel hydraulic fittings	Quantity	List price $17.39	Your price	Total $17.39
FS6500-16-16	90° Elbow, 1" ORFS Male x 1" ORFS Female Swivel hydraulic fittings	Quantity	List price $23.47	Your price	Total $23.47
FS6500-20-20	90° Elbow, 1-1/4" ORFS Male x 1-1/4" ORFS Female Swivel hydraulic fittings	Quantity	List price $58.13	Your price	Total $58.13
FS6500-24-20	90° Elbow, 1-1/2" ORFS Male x 1-1/4" ORFS Female Swivel hydraulic fittings	Quantity	List price $56.60	Your price	Total $56.60
FS6500-24-24	90° Elbow, 1-1/2" ORFS Male x 1-1/2" ORFS Female Swivel hydraulic fittings	Quantity	List price $54.40	Your price	Total $54.40

Items of 12 items

Page:of 1
