FS6803

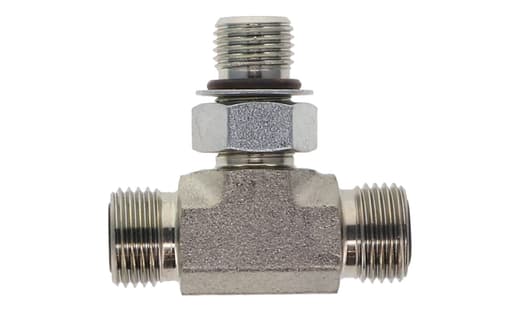

SAE O-Ring Face Seal ORFS Male x SAE O-Ring Boss ORB Male Branch Tee

O-Ring Face Seal (ORFS) Adapters are forged from high-pressure steel and treated with Carbon Zinc Trivalent for enhanced corrosion resistance. Complying with SAE J5143 standards, these adapters feature straight threads and an O-ring, ensuring a tight seal between male and female connections. Additionally, these fittings can adapt to various other thread types, including JIC, NPT, and NPSM.

Material:Carbon Steel

Plating:Trivalent Zinc

Shaping:Forged

O-Ring Material:NBR (Buna-N) (Viton available upon request)

Technical Specs

Competitor Cross Reference

Size:

Item code	Item name	Qty	List price	Your price	Total
FS6803-04-04-04	Branch Tee, 1/4" ORFS x 1/4" ORFS x 1/4" ORB Male (Straight Thread) hydraulic fittings	Quantity	List price $6.96	Your price	Total $6.96
FS6803-06-06-06	Branch Tee, 3/8" ORFS x 3/8" ORFS x 3/8" ORB Male (#6 Straight Thread) hydraulic fittings	Quantity	List price $10.18	Your price	Total $10.18
FS6803-08-08-06	Branch Tee, 1/2" ORFS x 1/2" ORFS x 3/8" ORB Male (#6 Straight Thread) hydraulic fittings	Quantity	List price $12.55	Your price	Total $12.55
FS6803-08-08-08	Branch Tee, 1/2" ORFS x 1/2" ORFS x 1/2" ORB Male (#8 Straight Thread) hydraulic fittings	Quantity	List price $11.84	Your price	Total $11.84
FS6803-10-10-10	Branch Tee, 5/8" ORFS x 5/8" ORFS x 5/8" ORB Male (#10 Straight Thread) hydraulic fittings	Quantity	List price $18.23	Your price	Total $18.23
FS6803-12-12-10	Branch Tee, 3/4" ORFS x 3/4" ORFS x 5/8" ORB Male (#10 Straight Thread) hydraulic fittings	Quantity	List price $33.48	Your price	Total $33.48
FS6803-12-12-12	Branch Tee, 3/4" ORFS x 3/4" ORFS x 3/4" ORB Male (#12 Straight Thread) hydraulic fittings	Quantity	List price $29.80	Your price	Total $29.80
FS6803-12-12-16	Branch Tee, 3/4" ORFS x 3/4" ORFS x 1" ORB Male (#16 Straight Thread) hydraulic fittings	Quantity	List price $50.29	Your price	Total $50.29
FS6803-16-16-16	Branch Tee, 1" ORFS x 1" ORFS x 1" ORB Male (#16 Straight Thread) hydraulic fittings	Quantity	List price $35.44	Your price	Total $35.44
FS6803-20-20-16	Branch Tee, 1-1/4" ORFS x 1-1/4" ORFS x 1" ORB Male (#16 Straight Thread) hydraulic fittings	Quantity	List price $72.11	Your price	Total $72.11
FS6803-20-20-20	Branch Tee, 1-1/4" ORFS x 1-1/4" ORFS x 1 1/4" ORB Male (#20 Straight Thread) hydraulic fittings	Quantity	List price $72.27	Your price	Total $72.27
FS6803-24-24-24	Branch Tee, 1-1/2" ORFS x 1-1/2" ORFS x 1 1/2" ORB Male (#24 Straight Thread) hydraulic fittings	Quantity	List price $122.08	Your price	Total $122.08

Items of 12 items

Page:of 1

FS6803

SAE O-Ring Face Seal ORFS Male x SAE O-Ring Boss ORB Male Branch Tee

FS6803-04-04-04

FS6803-06-06-06

FS6803-08-08-06

FS6803-08-08-08

FS6803-10-10-10

FS6803-12-12-10

FS6803-12-12-12

FS6803-12-12-16

FS6803-16-16-16

FS6803-20-20-16

FS6803-20-20-20

FS6803-24-24-24
