FS6809

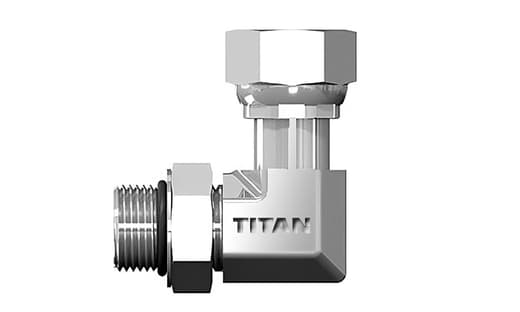

SAE O-Ring Face Seal ORFS Female Swivel x SAE O-Ring Boss ORB Male 90° Elbow

O-Ring Face Seal (ORFS) Adapters are forged from high-pressure steel and treated with Carbon Zinc Trivalent for enhanced corrosion resistance. Complying with SAE J5143 standards, these adapters feature straight threads and an O-ring, ensuring a tight seal between male and female connections. Additionally, these fittings can adapt to various other thread types, including JIC, NPT, and NPSM.

Material:Carbon Steel

Plating:Trivalent Zinc

Shaping:Forged

O-Ring Material:NBR (Buna-N) (Viton available upon request)

Technical Specs

Competitor Cross Reference

Size:

Item code	Item name	Qty	List price	Your price	Total
FS6809-04-04	90° Elbow, 1/4" ORFS Female Swivel x 1/4" ORB Male (Straight Thread) hydraulic fittings	Quantity	List price $6.06	Your price	Total $6.06
FS6809-06-06	90° Elbow, 3/8" ORFS Female Swivel x 3/8" ORB Male (#6 Straight Thread) hydraulic fittings	Quantity	List price $8.64	Your price	Total $8.64
FS6809-08-08	90° Elbow, 1/2" ORFS Female Swivel x 1/2" ORB Male (#8 Straight Thread) hydraulic fittings	Quantity	List price $10.36	Your price	Total $10.36
FS6809-10-10	90° Elbow, 5/8" ORFS Female Swivel x 5/8" ORB Male (#10 Straight Thread) hydraulic fittings	Quantity	List price $25.60	Your price	Total $25.60
FS6809-12-12	90° Elbow, 3/4" ORFS Female Swivel x 3/4" ORB Male (#12 Straight Thread) hydraulic fittings	Quantity	List price $20.67	Your price	Total $20.67
FS6809-16-16	90° Elbow, 1" ORFS Female Swivel x 1" ORB Male (#16 Straight Thread) hydraulic fittings	Quantity	List price $28.57	Your price	Total $28.57
FS6809-20-20	90° Elbow, 1-1/4" ORFS Female Swivel x 1-1/4" ORB Male (#20 Straight Thread) hydraulic fittings	Quantity	List price $51.65	Your price	Total $51.65

Items of 7 items

Page:of 1

FS6809

SAE O-Ring Face Seal ORFS Female Swivel x SAE O-Ring Boss ORB Male 90° Elbow

FS6809-04-04

FS6809-06-06

FS6809-08-08

FS6809-10-10

FS6809-12-12

FS6809-16-16

FS6809-20-20
