Crimp Fittings: 101
What are Hydraulic Crimp Fittings?
Hydraulic crimp fittings are specialized connectors used to join hydraulic hoses to components such as hydraulic pumps, cylinders, and other machinery. These fittings are designed to create a tight seal by mechanically crimping the hose onto the fitting, ensuring a permanent and leak-proof connection. This blog explores what hydraulic crimp fittings are, how they work, and why they are indispensable in various industrial applications.
The Design of Crimp Fittings
Hydraulic crimp fittings are typically made from strong, durable materials like steel, stainless steel, or brass. Each fitting consists of two main parts:
- The Ferrule: This is the part that actually deforms during the crimping process. It is a sleeve that compresses the hose against the fitting, ensuring a tight seal.
- The Insert or Nipple: This part of the fitting is inserted into the hose and serves as the anchoring point for the ferrule.
How Crimp Fittings are Installed
The process of installing a hydraulic crimp fitting involves several steps:
1. Cutting the Hose: First, the hydraulic hose is cut to the required length, typically using a specialized hose cutter to ensure a clean, even edge.
2. Inserting the Fitting: The nipple part of the crimp fitting is then inserted into the hose. It's essential that the hose is fully seated on the fitting to ensure a secure connection.

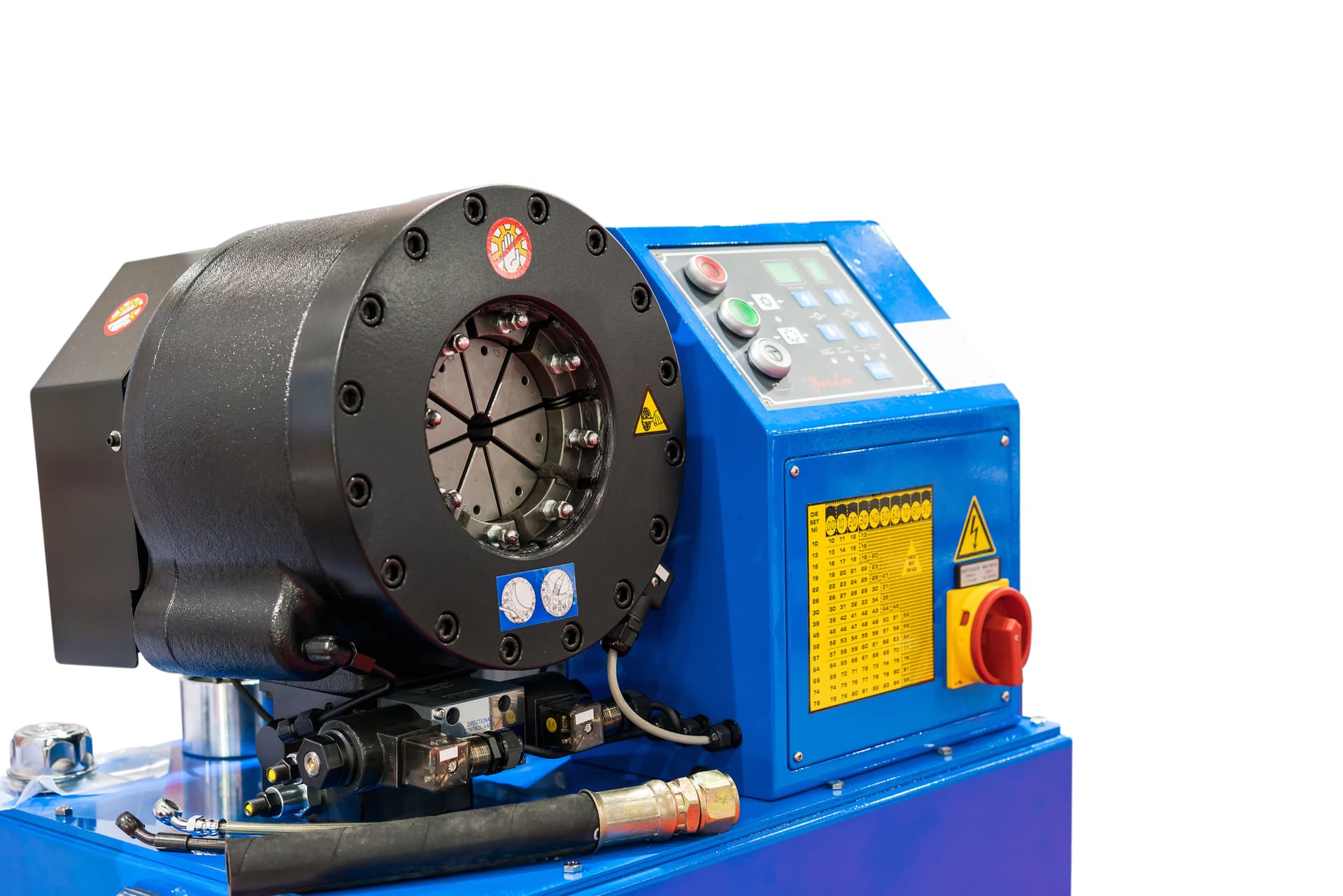

3. Crimping: Once the fitting is in place, a hydraulic hose crimping machine is used to apply pressure around the ferrule, deforming it onto the hose and nipple. The amount of pressure applied and the method of crimping depend on the type of hose and fitting.
4. Inspection: After crimping, the assembly is typically inspected to ensure that the fitting is properly attached. This may involve visual inspection, measuring the diameter of the crimped ferrule, or even pressure testing the assembly.
Benefits of Using Hydraulic Crimp Fittings
Hydraulic crimp fittings offer several advantages over other types of hose fittings:
- Leak-Proof Seal: The crimping process ensures a very tight and leak-proof seal that is capable of withstanding high pressures and vibrations.
- Durability: Crimp fittings are highly durable and can withstand extreme temperatures and harsh environmental conditions.
- Versatility: These fittings are available in various shapes and sizes, making them suitable for a wide range of applications, from construction machinery to automotive systems.
- Ease of Installation: Although a crimping machine is required, the process of installing crimp fittings is relatively straightforward and provides a permanent solution.
Applications of Hydraulic Crimp Fittings
Due to their robustness and reliability, hydraulic crimp fittings are widely used in various industries, including:
- Automotive: For brake lines, power steering systems, and air conditioning units.
- Construction: In hydraulic systems of excavators, bulldozers, and other heavy machinery.
- Manufacturing: In the hydraulic systems used in factory machinery and industrial equipment.
- Agriculture: In tractors and other farming equipment where hydraulic lines are exposed to rough conditions.
Conclusion
Hydraulic crimp fittings are essential for creating reliable and durable connections in hydraulic systems. Their ability to maintain a leak-proof seal under high pressure makes them indispensable in many industrial applications. By understanding the function and importance of these fittings, technicians and engineers can ensure the longevity and efficiency of their hydraulic systems.
