LM

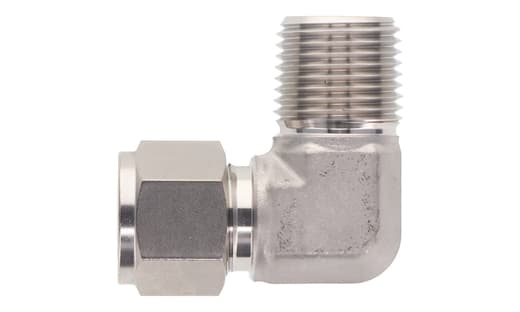

LM - Male NPT Elbow

Our 316 stainless steel dual ferrule instrumentation tube fittings offer a reliable solution for various applications. The dual ferrule design ensures a stable connection, minimizing potential leaks and maintaining consistent flow rates. Constructed to handle variations in vibration, temperature, and pressure, these fittings are durable and seamlessly integrate into instrumentation systems. Suitable for a range of industries, their consistent design standards emphasize safety and efficiency, meeting diverse operational needs.

Material:316L Stainless Steel

Ferrule:Dual Ferrule

Shaping:Forged

Bar Stock:ASTM A479, ASTM A276

Forging:ASTM B164

Dimensional Drawings

Technical Specs

Competitor Cross Reference

Item code	Item name	Qty	List price	Your price	Total
LM-1-1N	1/16 Tube x 1/16" Male NPT 90 Elbow - SS	Quantity	List price $29.61	Your price	Total $29.61
LM-2-2N	1/8 Tube x 1/8" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $18.55	Your price	Total $18.55
LM-2-4N	1/8 Tube x 1/4" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $18.83	Your price	Total $18.83
LM-3-2N	3/16" Tube x 1/8" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $18.55	Your price	Total $18.55
LM-3-4N	3/16" Tube x 1/4" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $19.88	Your price	Total $19.88
LM-4-2N	1/4" Tube x 1/8" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $18.55	Your price	Total $18.55
LM-4-4N	1/4" Tube x 1/4" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $17.84	Your price	Total $17.84
LM-4-6N	1/4" Tube x 3/8" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $21.41	Your price	Total $21.41
LM-4-8N	1/4" Tube x 1/2" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $27.24	Your price	Total $27.24
LM-5-2N	5/16" Tube x 1/8" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $17.78	Your price	Total $17.78
LM-5-4N	5/16" Tube x 1/4" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $18.32	Your price	Total $18.32
LM-5-6N	5/16" Tube x 3/8" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $21.84	Your price	Total $21.84
LM-6-12N	3/8" Tube x 3/4" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $46.70	Your price	Total $46.70
LM-6-2N	3/8" Tube x 1/8" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $21.45	Your price	Total $21.45
LM-6-4N	3/8" Tube x 1/4" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $22.02	Your price	Total $22.02
LM-6-6N	3/8" Tube x 3/8" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $23.01	Your price	Total $23.01
LM-6-8N	3/8" Tube x 1/2" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $29.49	Your price	Total $29.49
LM-8-12N	1/2" Tube x 3/4" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $40.97	Your price	Total $40.97
LM-8-4N	1/2" Tube x 1/4" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $26.16	Your price	Total $26.16
LM-8-6N	1/2" Tube x 3/8" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $26.16	Your price	Total $26.16
LM-8-8N	1/2" Tube x 1/2" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $33.54	Your price	Total $33.54
LM-10-12N	5/8" Tube x 3/4" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $44.58	Your price	Total $44.58
LM-10-6N	5/8" Tube x 3/8" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $37.75	Your price	Total $37.75
LM-10-8N	5/8" Tube x 1/2" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $37.15	Your price	Total $37.15
LM-12-12N	3/4" Tube x 3/4" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $45.51	Your price	Total $45.51
LM-12-8N	3/4" Tube x 1/2" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $42.58	Your price	Total $42.58
LM-14-12N	7/8" Tube x 3/4" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $65.21	Your price	Total $65.21
LM-16-12N	1" Tube x 3/4" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $84.73	Your price	Total $84.73
LM-16-16N	1" Tube x 1" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $74.11	Your price	Total $74.11
LM-20-20N	1-1/4" Tube x 1-1/4" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $160.49	Your price	Total $160.49
LM-24-24N	1-1/2" Tube x 1-1/2" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $297.07	Your price	Total $297.07
LM-32-32N	2" Tube x 2" Male NPT 90 Elbow - 316 Stainless	Quantity	List price $651.48	Your price	Total $651.48

Items of 32 items

Page:of 1
